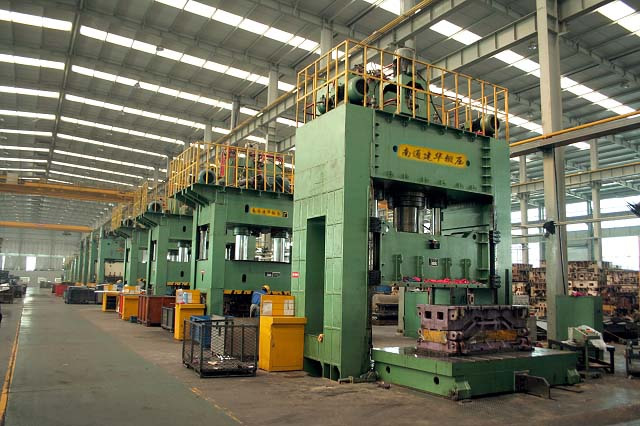

Hydraulic Drawing Press
● Be applicable to all stretching, bending, forming, feeding, blanking, flanging and other processes.
● With structure design optimized by computer, the four-columnstructure is simple, economical and practical; the frame type structure has good rigidity, high accuracy and strong anti-deviation capacity.
● The hydraulic control system adopts plug-inintegrated systemwith reliable operation, long service life, small hydraulic shock, reducing connecting pipe and leakage point.
● The electric system is controlled by PLC, which is of compact structure, agility, reliability and flexibility.
● The operation panel selectioncan not only realize two kinds of forming processes of constant control and pressure control, but also three processes cycle with pad, on-pad and ejection.
Technical Parameter of YJH27 Series Single-Action Hydraulic Drawing Press
|
Item
|
Unit
|
YJH27
-63 |
YJH27
-100 |
YJH27
-200 |
YJH27
-315 |
YJH27
-500 |
YJH27
-630 |
YJH27
-1000 |
|
|
Nominal Force
|
KN
|
630
|
1000
|
2000
|
3150
|
5000
|
6300
|
10000
|
|
|
Return Force
|
KN
|
180
|
260
|
480
|
630
|
1000
|
1250
|
1250
|
|
|
Cushion Force
|
KN
|
200
|
500
|
800
|
1250
|
1000
|
2500
|
3000
|
|
|
Max pressure of liquid
|
KN
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
25
|
|
|
Stroke
|
Slide
|
mm
|
450
|
700
|
710
|
800
|
900
|
1000
|
1400
|
|
Cushion
|
mm
|
180
|
300
|
250
|
300
|
350
|
400
|
350
|
|
|
Max Daylight
|
mm
|
900
|
1000
|
1120
|
1250
|
1500
|
1600
|
2300
|
|
|
Slide speed |
Descent
|
mm/s
|
120
|
150
|
100
|
100
|
140
|
100
|
100
|
|
Pressing
|
mm/s
|
11-15
|
20
|
6-15
|
6-12
|
5-15
|
6-14
|
13
|
|
|
Return
|
mm/s
|
130
|
80
|
80
|
60
|
70
|
65
|
60
|
|
|
Table Dimensions |
L-R
|
mm
|
560
|
720
|
1000
|
1250
|
1400
|
2600
|
2500
|
|
F-B
|
mm
|
500
|
580
|
900
|
1120
|
1400
|
1750
|
2000
|
|
|
Cushion Dimensions |
L-R
|
mm
|
310
|
470
|
800
|
900
|
1100
|
1950
|
2000
|
|
F-B
|
mm
|
300
|
430
|
630
|
800
|
1100
|
1200
|
1500
|
|
|
Height of table above Floor |
mm
|
750
|
750
|
500
|
600
|
500
|
500
|
0
|
|
|
Total Power
|
KW
|
11
|
11
|
22
|
22
|
45
|
45
|
90
|
|
|
Total Weight
|
Kg
|
4200
|
6500
|
14200
|
18000
|
29500
|
77000
|
102000
|
|
|
Overall Dimensions |
L-R
|
mm
|
1420
|
1960
|
2698
|
3018
|
4120
|
5222
|
5800
|
|
F-B
|
mm
|
1265
|
1620
|
2530
|
2530
|
3600
|
3785
|
6050
|
|
|
Height above Floor |
mm
|
2698
|
3250
|
4110
|
4560
|
5545
|
5970
|
8098
|
|
|
Depth below Floor |
mm
|
|
300
|
800
|
1000
|
1200
|
1400
|
2400
|
|
|
Form of frame
|
|
Four Column
|
Four Column
|
Four Column
|
Four Column |
Four Column |
Four Column |
Four Column |
|
